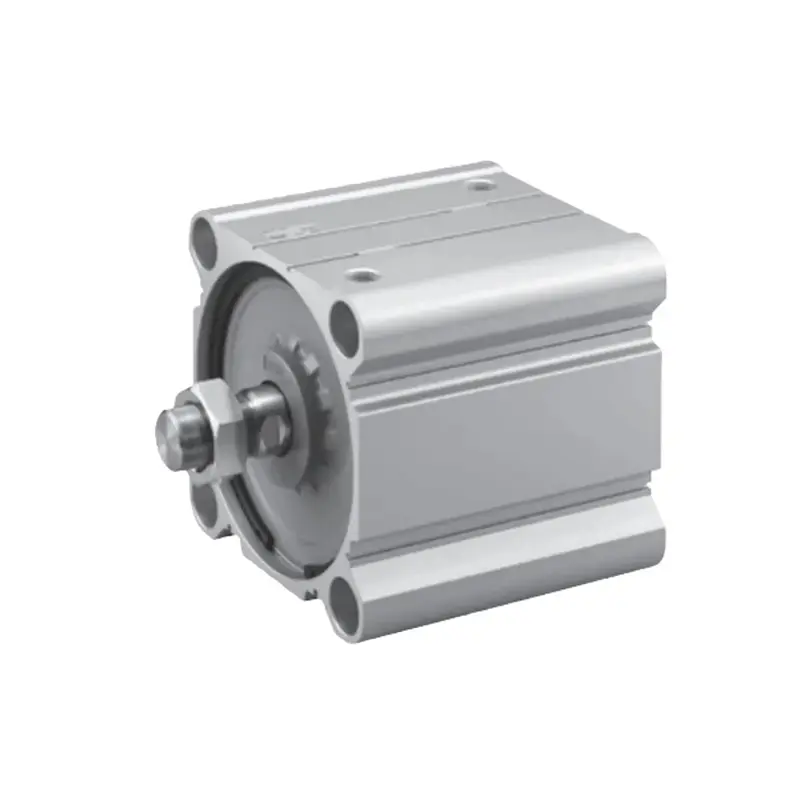

CQ2 SMC Single Doubel Acting Aluminum Alloy Compact Pneumatic Cylinder

The CHDAC CQ2 compact pneumatic cylinder is a short-body linear actuator designed for space-constrained automation applications. Constructed from high-strength aluminum alloy, this compact air cylinder provides stable output force, smooth motion, and long life in high-cycle industrial applications.

As a leading CQ2 compact cylinder manufacturer in China, CHDAC offers dimensionally interchangeable CQ2 type cylinders for OEM machinery applications, equipment replacement, and bulk industrial distribution.

If you are seeking a reliable CQ2 cylinder supplier with stable quality and competitive factory pricing — this model is designed for you.

PRODUCTS

Product Details

Quick Specifications (AI Search Friendly)

Product Name: CQ2 Compact Pneumatic Cylinder
Type: Double Acting / Single Acting (Spring Return)
Bore Size: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm
Stroke Range: 5–50 mm (depending on bore)
Body Material: Aluminum Alloy
Working Medium: Filtered Compressed Air
Operating Pressure: 0.1 – 1.0 MPa
Proof Pressure: 1.5 MPa
Temperature Range: 5 – 60°C
Mounting Type: Through-hole / Female Thread
Magnet Option: Available for auto switch

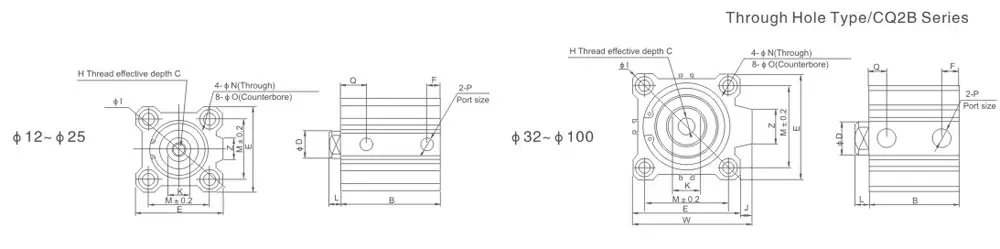

Aluminum alloy compact pneumatic cylinder CQ2 type with magnetic piston for automation equipment

What Is a CQ2 Compact Cylinder?

A CQ2 compact pneumatic cylinder is a reduced-length air actuator designed to deliver linear motion where installation space is limited. Compared with standard ISO cylinders, the CQ2 design:

Has a significantly shorter overall length
Maintains comparable output force
Reduces equipment footprint
Improves modular system integration

This makes it ideal for modern automation lines where machine density is increasing.

Key Advantages of CHDAC CQ2 Compact Cylinders

Space-Saving Structure

The shortened body design allows installation in:

Pick-and-place modules
Electronic assembly machines
Packaging and labeling systems
Semiconductor auxiliary mechanisms
Robotic positioning units

When equipment space is tight, compact cylinders become the preferred solution.

High-Strength Aluminum Alloy Body

Lightweight yet rigid structure
Corrosion-resistant surface treatment
Excellent heat dissipation
Reduced machine load weight

Ideal for high-speed automation environments.

Stable Output Force

Theoretical output force at 0.6 MPa:

Bore Size	Approx. Output Force
20 mm	≈ 188 N
32 mm	≈ 482 N
40 mm	≈ 754 N
63 mm	≈ 1,870 N

Formula:
Force (N) ≈ Pressure (MPa) × Piston Area (mm²)

Our engineering team can assist with force calculation to ensure correct selection.

Long Service Life & Smooth Operation

Hard chrome-plated piston rod (45# steel equivalent)
Precision sealing system for air tightness
Self-lubricating bearing design
Suitable for lubrication-free operation

Even in high-cycle production lines, the cylinder maintains stable repeatability and low noise levels.

Magnetic Piston for Automation Control

Optional built-in magnet allows installation of:

Reed switches
Solid-state sensors
PLC position monitoring systems

This supports automated motion feedback and production cycle control.

CQ2 Compact Cylinder vs Standard ISO Cylinder

Feature	CQ2 Compact Cylinder	Standard ISO Cylinder
Body Length	Short	Longer
Installation Space	Minimal	Moderate
Weight	Lightweight	Heavier
Ideal Stroke	Short	Wide Range
Best For	Compact automation modules	General machinery

For equipment upgrades or compact machine design, CQ2 cylinders are often the better choice.

Typical Application Industries

CHDAC CQ2 compact cylinders are widely used in:

Electronics manufacturing
Medical device assembly
Packaging machinery
Automotive sub-assembly
Precision automation equipment

As factories move toward high-density automation and Industry 4.0 systems, compact actuators are increasingly preferred.

Ordering Code Example

CQ2 – B – 32 – 25 – D – M

CQ2: Series
B: Mounting type
32: Bore size (mm)
25: Stroke (mm)
D: Double Acting
M: Male Thread Rod End

Custom stroke lengths and rod thread types are available.

Why Choose CHDAC as Your CQ2 Cylinder Supplier?

Many suppliers offer CQ2-type cylinders. The difference is consistency.

At CHDAC:

CNC precision machining ensures dimensional stability
100% pressure and leakage testing before shipment
Stable bulk production capacity
Fast delivery time (typically 7–15 days)
OEM private labeling support
Flexible MOQ for distributors

We focus on long-term cooperation with automation equipment manufacturers and industrial importers worldwide.

Selection Guide – How to Choose the Right CQ2 Compact Cylinder

Confirm Required Force

Calculate load and apply safety factor (usually 1.3–1.5).

Select Appropriate Bore Size

Larger bore = higher force.

Choose Stroke Length

Avoid excessive stroke to reduce size and air consumption.

Decide Acting Type

Double Acting → More precise control
Single Acting → Lower air usage

Determine Sensor Requirement

If automation feedback is needed, select magnetic piston type.

If you are unsure, send us your load and stroke requirement — we will recommend the correct model.

Bore(mm)	12	16	20	25	32	40	50	63	80	100
Working Medium	Air
Motion Pattern	Double action/Single Action Extrusion type/Single Action Drawing-in Type
Ensured Pressure Resistance	15.3kgf/cm2(1.5Mpa)
Max.pressure	10.2kgf/cm2(1.0Mpa)
Environment and fluid temp	5~+60℃
Thread Type	Inner Thread(Standard)/Outer Thread(Optional)
Buffering	NO
Margin of Stroke Error(mm)	+1.0
Installation	Through Hole (Standard)，Inner size on the two sides(Optional)
Port size	M5×0.8				G1/8″		G1/4″		G3/8″

Model	Stroke range (mm)	B	ΦD	E	F	H	C	ΦI	J	K	L	M	ΦN	ΦO	P	Q	W	Z
CQ2B12-□D	5~30	17+st	6	25	5	M3×0.5	6	32	–	5	3.5	15.5	3.5	6.5/depth 3.5	M5×0.8	7.5	–	–
CQ2B16-□D	5~30	18.5+st	8	29	5.5	M4×0.7	8	38	–	6	3.5	20	3.5	6.5/depth 3.5	M5×0.8	8	–	10
CQ2B20-□D	5~50	19.5+st	10	36	5.5	M5×0.8	7	47	–	8	4.5	25.5	5.5	9/depth 7	M5×0.8	9	–	10
CQ2B25-□D	5~50	22.5+st	12	40	5.5	M6×1.0	12	52	–	10	5	28	5.5	9/depth 7	M5×0.8	11	–	10
CQ2B32-□D	5	23+st	16	45	5.5	M8×1.25	13	60	4.5	14	7	34	5.5	9/depth 7	M5×0.8	11.5	49.5	18
CQ2B32-□D	10~50	23+st	16	45	7.5	M8×1.25	13	60	4.5	14	7	34	5.5	9/depth 7	1/8	11.5	49.5	18
CQ2B40-□D	5~50	29.5+st	16	52	8	M8×1.25	13	69	5	14	7	40	5.5	9/depth 7	1/8	11	57	18
CQ2B50-□D	10~50	30.5+st	20	64	10.5	M10×1.5	15	86	7	17	8	50	6.6	11/depth 8	1/4	10.5	71	22
CQ2B63-□D	10~50	36+st	20	77	10.5	M10×1.5	15	103	7	17	8	60	9	14/depth 10.5	1/4	15	84	22
CQ2B80-□D	10~50	43.5+st	25	98	12.5	M16×2.0	21	132	6	22	10	77	11	17.5/depth 13.5	3/8	16	104	26
CQ2B100-□D	10~50	53+st	30	117	13	M20×2.5	27	156	6.5	27	12	94	11	17.5/depth 13.5	3/8	23	123.5	26

Model	Stroke(mm)	B	F	P	Q
32	75,100	33	7.5	1/8	10.5
40	75,100	39.5	8	1/8	11
50	75,100	40.5	10.5	1/4	10.5
63	75,100	46	10.5	1/4	15
80	75,100	53.5	12.5	3/8	16
100	75,100	63	13	3/8	23

Model	B			ΦD	E	F		H	C	ΦI	J	K	L	M	ΦN	ΦO	P			Q		W	Z
Model	5st	10st	20st	ΦD	E	5st	10st	H	C	ΦI	J	K	L	M	ΦN	ΦO	5st	10st	20st	5st 1	0st	W	Z
CQ2B12-□S	22	27	–	6	25	5	5	M3×0.5	6	32	–	5	3.5	15.5	3.5	6.5/depth 3.5	M5×0.8		–	7.5	7.5	–	–
CQ2B16-□S	23.5	28.5	–	8	29	5.5	5.5	M4×0.7	8	38	–	6	3.5	20	3.5	6.5/depth 3.5	M5×0.8		–	8	8	–	10
CQ2B20-□S	24.5	29.5	–	10	36	5.5	5.5	M5×0.8	7	47	–	8	4.5	25.5	5.5	9/depth 7	M5×0.8		–	9	9	–	10
CQ2B25-□S	27.5	32.5	–	12	40	5.5	5.5	M6×1.0	12	52	–	10	5	28	5.5	9/depth 7	M5×0.8		–	11	11	–	10
CQ2B32-□S	28	33	–	16	45	5.5	7.5	M8×1.25	13	60	4.5	14	7	34	5.5	9/depth 7	M5×0.8	1/8	–	11.5	11.5	49.5	18
CQ2B40-□S	34.5	39.5	–	16	52	8	8	M8×1.25	13	69	5	14	7	40	5.5	9/depth 7	1/8		–	11	11	57	18
CQ2B50-□S	–	40.5	50.5	20	64	10.5	10.5	M10×1.5	15	86	7	17	8	50	6.6	11/depth 8	–	1/4		10.5	10.5	71	22

FAQ

What is the difference between single acting and double acting compact cylinders?

Single acting cylinders use compressed air in one direction and spring return.
Double acting cylinders use compressed air for both extension and retraction, providing better speed control and stability.

Can this CQ2 cylinder replace original CQ2 models?

Yes, our CQ2 type cylinders are dimensionally interchangeable with standard CQ2 series models. We recommend confirming critical mounting dimensions before replacement.

Do CQ2 compact cylinders require lubrication?

They are designed for lubrication-free operation under clean, filtered air. If lubricated air is used, lubrication must remain continuous.

What is the typical service life?

Under normal industrial conditions with clean air supply, compact cylinders can operate for millions of cycles. Actual life depends on load, pressure, and environment.
